AUO G070VW01 V002 7-inch LCD Display Panel – Industrial Grade, Operating Temperature -30 to +85 Degree

AUO G070VW01 V002 Industrial Display Description

• 7.0-inch industrial-grade a-Si TFT-LCD, compact design suitable for integrated equipment.
• WVGA resolution (800×480) provides clear display, meeting industrial information display needs.
• WLED backlight design offers low power consumption and long lifespan, suitable for 24/7 operation.
• Stable brightness, suitable for indoor and semi-outdoor industrial environments.
• Wide viewing angle design enhances readability for operation and monitoring.
• LVDS interface ensures stable signal and compatibility with mainstream industrial motherboards.
• Industrial-grade reliability design adapts to complex operating conditions and long-term use.
• The product complies with RoHS environmental certification standards.

AUO G070VW01 V002 Applications

• Industrial control equipment operation display screen.
• Industrial Human-Machine Interface (HMI) terminal.
• Automation equipment status monitoring panel.
• Medical equipment auxiliary display terminal.
• Instrumentation and testing equipment display.
• Embedded systems and dedicated control terminals.

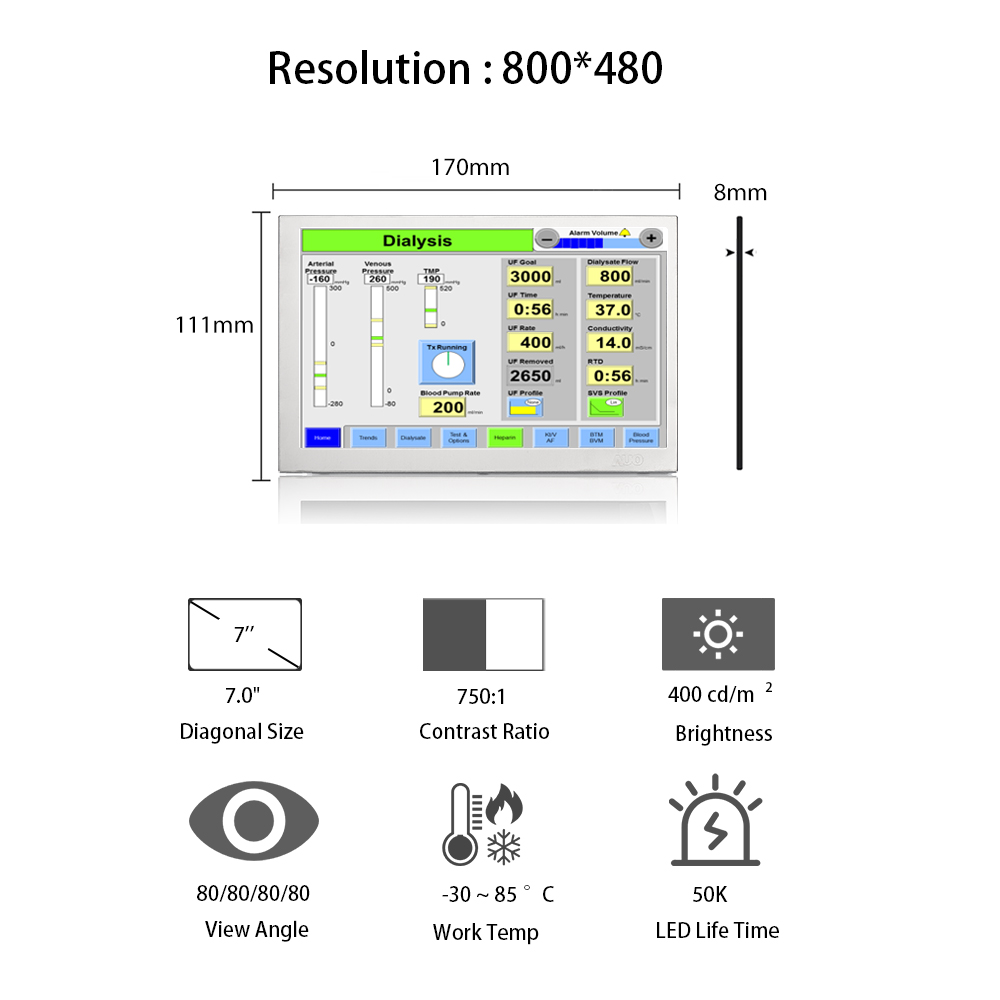

AUO G070VW01 V002 Product Specifications

LCD Modules Brand	AUO	Model	G070VW01 V002
Power consumption	2.52W (Typ.)	Aspect Ratio	15:9 (H:V)
Resolution	800(RGB)×480, WVGA 133PPI	Backlight	WLED , 50K hours , With LED Driver
Interface	* LVDS (1 ch, 6/8-bit) , 20 pins Connector	Display Mode	TN, Normally White, Transmissive
Brightness	400 cd/m² (Typ.)	Response	20/10ms
Contrast	750:1 (Typ.) (TM)	Color Depth	262K/16.2M 60% NTSC
View Angle	80/80/80/80	Weight	0.2KG
Active Area (mm)	152.4(W)×91.44(H) mm	Work Temp	-30 ~ 85 °C
Outline Dimension	170(H)×111(V)×8(D) mm	Storage Temp	-30 ~ 85 °C

Frequently Asked Questions(FAQ)

Is it an industrial-grade screen?

Yes, designed for long-term operation in industrial and embedded devices.

Does it support touch?

Standard models do not include touch; external resistive or capacitive touch solutions are available.

Is it suitable for long-term operation?

Supports 24/7 continuous operation with high stability.

Is the interface universal?

Uses an LVDS interface for easy integration with industrial motherboards and systems.

Is it suitable for harsh environments?

Suitable for general industrial environments; protective structures can be added to enhance adaptability.

Original AUO packaging (quality guaranteed); official screen distributor (compititive price); own TFT factory (convenient after-sales service); in-house R&D team (provides matching touch driver solutions)

We provide comprehensive customization services: cable adjustments, capacitive/resistive touchscreen upgrades with custom glass, interface integration (HDMI, USB, etc.), connector modifications,cover glass additions, versatile mounting options, and custom backlights (voltage, brightness, color).

In addition to these customized services, our displays excel in a variety of industry applications: medical displays boast brightness up to 1000 nits and utilize antibacterial glass to ensure a clear and sterile surgical environment; automotive console displays prioritize reliability; industrial human-machine interfaces (HMIs) employ M12 connectors and IP67 protection ratings to withstand harsh environments; and video access control displays offer high brightness, high-definition image quality, and support custom shapes. Please submit your project requirements via our form or email, and our experts will provide you with a personalized solution framework within 48 hours.
