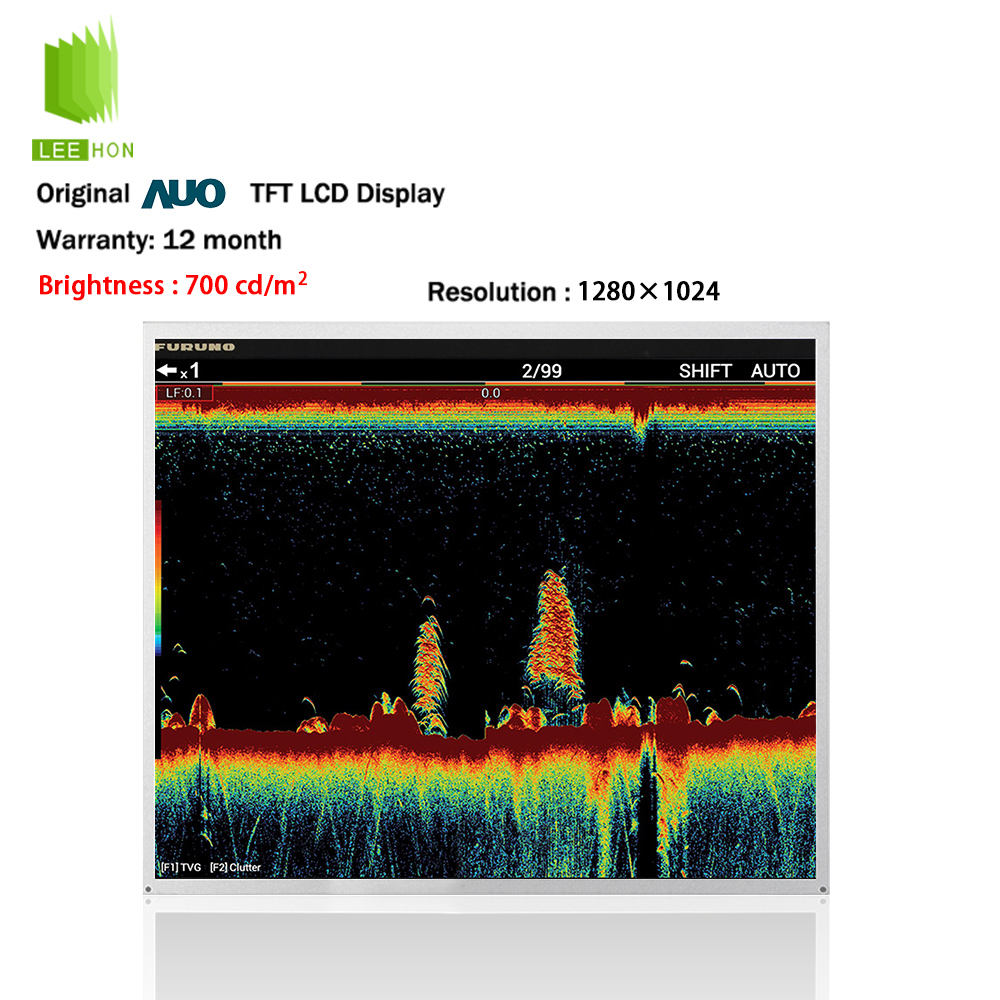

AUO G190EAN01.5 19 Inch SXGA LCD Panel 1280×1024 IPS Marine Display
Introduction
The AUO G190EAN01.5 is a 19.0-inch industrial TFT LCD panel with 1280 × 1024 SXGA resolution and IPS technology for full viewing angles and excellent color consistency. Engineered for marine navigation displays, ship bridge systems, and industrial control equipment, this LCD module delivers stable performance, high reliability, and long LED backlight life for mission-critical applications.
AUO G190EAN01.5 19 Inch SXGA LCD Panel Product Highlights
- Original AUO industrial-grade LCD panel
- 19.0-inch display size
- 1280 × 1024 SXGA resolution
- IPS wide viewing angle technology
- LED backlight with long lifetime
- High contrast ratio
- Anti-glare surface
- Wide temperature support
- LVDS interface
- Designed for 24/7 continuous operation
AUO G190EAN01.5 19 Inch SXGA LCD Panel Product Specifications
| LCD Modules Brand | AUO | Model | G190EAN01.5 |
| Power consumption | 27W | Aspect Ratio | 5:4 (W : H) |
| Resolution | 1280(RGB)×1024, SXGA 86PPI | Backlight | WLED , 50K hours , With LED Driver |
| Interface | LVDS (2 ch, 8-bit) , 30 pins Connector | Display Mode | AHVA, Normally Black, Transmissive |
| Brightness | 700 cd/m² (Typ.) | Response | 13/12 (Typ.)(Tr/Td) |
| Contrast | 1000 : 1 | Color Depth | 16.7M 72% NTSC |
| View Angle | 89/89/89/89 | Weight | 2KG |
| Active Area (mm) | 376.32(W)×301.056(H) mm | Work Temp | 0 ~ 50 °C |
| Outline Dimension | 396×324 ×15.8 mm | Storage Temp | -20 ~ 60 °C |
AUO G190EAN01.5 19 Inch SXGA LCD Panel Application Scenarios
- Marine navigation displays
- Radar and sonar monitors
- Ship bridge command systems
- Industrial HMI terminals
- Factory automation equipment
- Medical devices
- Transportation systems
- Defense consoles
Customization Services
- LCD Display Supply – Industrial TFT-LCD panels, full sizes, stable supply, standard & stretched displays
- FPC Cable Customization – Custom length, pinout, connectors, and flexible circuit design
- Bonding Solutions – Air bonding, OCR/OCA/LOCA optical bonding for better clarity
- Cover Glass Customization – Custom thickness, printing, shapes, and surface treatment (AG/AR/AF)
- Interface Customization – RGB/LVDS/MIPI/eDP with optional HDMI/VGA/USB and conversion solutions
- Touch Screen Integration – PCAP & resistive touch, multiple structures, multi-touch support
- High Brightness Enhancement – Sunlight readable, 1000+ nits, wide brightness options for outdoor use
FAQ
1. What is the resolution of the AUO G190EAN01.5?
The panel features 1280 × 1024 SXGA resolution.
2. Does this panel use IPS technology?
Yes. It offers full viewing angles and excellent color consistency.
3. Is the G190EAN01.5 suitable for marine navigation systems?
Yes. It is designed for marine navigation and ship bridge displays.
4. What interface does the panel use?
The panel uses an LVDS interface.
5. Can a touch screen be added?
Yes. Capacitive and resistive touch options are available.
6. Is this panel suitable for 24/7 operation?
Yes. It is built for industrial-grade continuous use.
Original packaging (first-tier distributor in mainland China for AUO, BOE, KYOCERA, INNOLUX, TIANMA, and IVO); official screen distributor (preferential pricing); own TFT factory (convenient after-sales service); in-house R&D team (providing matching touch driver solutions).
Please send your project requirements to market@leehon.com, and our experts will provide you with a customized solution framework within 24 hours.
