Introduction
The AUO G240UAN01.1 is a 24-inch industrial TFT LCD panel featuring 1920 × 1200 WUXGA resolution and IPS technology for ultra-wide viewing angles and excellent color accuracy. With its 16:10 aspect ratio and high-resolution image quality, this display is especially suitable for endoscopy systems, medical imaging equipment, and high-performance industrial monitors.
AUO G240UAN01.1 24 Inch WUXGA IPS LCD Panel Product Highlights
- Original AUO 24-inch IPS TFT LCD panel
- 1920 × 1200 WUXGA resolution
- 16:10 aspect ratio for enhanced vertical workspace
- IPS technology with 178° viewing angles
- High color accuracy and uniformity
- LED backlight with long service life
- Wide operating temperature support
- LVDS / eDP interface (depending on version)

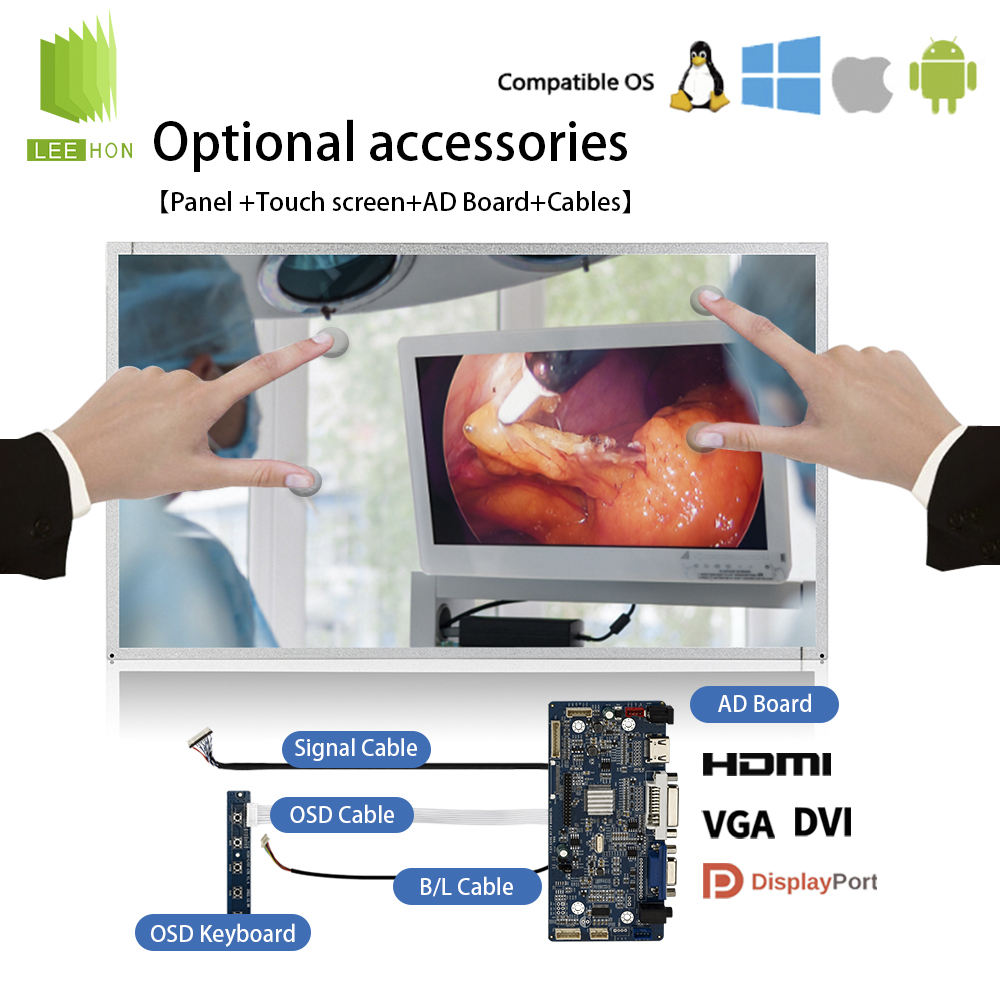

- Optional touch screen integration
- Suitable for medical and industrial applications
AUO G240UAN01.1 24 Inch WUXGA IPS LCD Panel Product Specifications
| LCD Modules Brand | AUO | Model | G240UAN01.1 |
| Power consumption | 45.8W (Typ.) | Aspect Ratio | 16:10 (H:V) |
| Resolution | 1920(RGB)×1200, WUXGA 94PPI | Backlight | WLED , 50K hours , With LED Driver |
| Interface | LVDS (2 ch, 10-bit) , 51 pins Connector | Display Mode | AHVA, Normally Black, Transmissive |
| Brightness | 850 cd/m² (Typ.) | Response | 14 |
| Contrast | 1000:1 (Typ.) | Color Depth | 1.07B 88% NTSC |
| View Angle | 89/89/89/89 | Weight | 2.7KG |
| Active Area (mm) | 518.4(W)×324(H) mm | Work Temp | 0 ~ 50 °C |
| Outline Dimension | 546.4×352×18.6 mm | Storage Temp | -20 ~ 60 °C |
AUO G240UAN01.1 24 Inch WUXGA IPS LCD Panel Application Scenarios
- Endoscopy displays
- Medical imaging monitors
- Surgical systems
- Industrial workstations
- Machine vision systems
- Test and measurement equipment
- Broadcasting monitors
- Control room displays
Customization Services
- LCD Display Supply – Industrial TFT-LCD panels, full sizes, stable supply, standard & stretched displays
- FPC Cable Customization – Custom length, pinout, connectors, and flexible circuit design
- Bonding Solutions – Air bonding, OCR/OCA/LOCA optical bonding for better clarity
- Cover Glass Customization – Custom thickness, printing, shapes, and surface treatment (AG/AR/AF)
- Interface Customization – RGB/LVDS/MIPI/eDP with optional HDMI/VGA/USB and conversion solutions
- Touch Screen Integration – PCAP & resistive touch, multiple structures, multi-touch support
- High Brightness Enhancement – Sunlight readable, 1000+ nits, wide brightness options for outdoor use
FAQ
1. What resolution does the AUO G240UAN01.1 support?
The panel features 1920 × 1200 WUXGA resolution.
2. What is the aspect ratio?
It uses a 16:10 aspect ratio, providing more vertical space than 16:9 displays.
3. Does this panel use IPS technology?
Yes. IPS technology offers wide viewing angles and accurate color reproduction.
4. Is this panel suitable for medical applications?
Yes. It is ideal for endoscopy, medical imaging, and surgical displays.
5. Can a touch screen be added?
Yes. Projected capacitive touch integration is available.
6. What interface does the panel use?
Depending on the version, it may use LVDS or eDP.
